In this review, we will be comparing Evoke 25C and Motion 50XTi, two Passive Center Channel speakers from Dynaudio and MartinLogan.
Let's have a brief look at the main features
of Dynaudio Evoke 25C and MartinLogan 50XTi first before getting into our more
detailed comparison.
Dynaudio Evoke 25C Key Specs
- 2-way Design
- 1.1" soft-dome Tweeter
- 2 x 5.5" Esotec+ MSP Woofer
- 50-23k Hz Frequency Response
- 88 dB Sensitivity
- Impedance: 6ohms
- Power Range:up to 200watts
- Weight:11.82kg
- Dimensions (H x W x D): 183.0" x 23-11/16" x 11-1/16"( 183.0 x 602.0 x 281.0mm )
MartinLogan 50XTi Key Specs
- 3-way Design
- 1.25 x 2.4" Folded Motion XT Tweeter
- 2 x 6.5" Aluminum Woofer
- 50-25k Hz Frequency Response
- 94 dB Sensitivity
- Impedance: 4ohms
- Power Range:20-300watts
- Weight:13.86kg
- Dimensions (H x W x D): 196.0" x 23" x 13-5/8"( 196.0 x 585.0 x 347.0mm )
What size room are the Dynaudio Evoke 25C and MartinLogan 50XTi speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Dynaudio Evoke 25C |
MartinLogan 50XTi |
| Near-field |
Poor |
Poor |
| Small Room |
Average |
Poor |
| Mid-size Room |
Good |
Good |
| Large Room |
Average |
Good |
| Very Large Room |
Poor |
Average |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the Dynaudio Evoke 25C and MartinLogan 50XTi compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that Evoke 25C is a 2-way design whereas the Motion 50XTi is a 3-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
| Driver |
Dynaudio Evoke 25C |
MartinLogan 50XTi |
|
Driver Setup
|
2-way
|
3-way
|
|
Tweeter
|
1.1-inch
|
1.25 x 2.4-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
2 x 5.5-inch
|
2 x 6.5-inch
|
Evoke 25C features a 1.1" Cerotar coated silk soft-dome Tweeter and 2 x 5.5" Esotec+ MSP Woofer with a Crossover frequency at 1200 and 2300Hz. On the other hand, the Motion 50XTi features a 1.25 x 2.4" Folded Motion XT Tweeter and 2 x 6.5" Aluminum Woofer with a Crossover frequency at 900Hz and 2200Hz.
Frequency Response
Evoke 25C has a frequency range of 50-23k Hz whereas Motion 50XTi has a frequency range of 50-25k Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Center Channel class in our database.
Low Frequency
Center Channel Speakers
High Frequency
Center Channel Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Evoke 25C is a 6 ohms speaker compared to the Motion 50XTi which has a nominal impedance of 4 ohms. Lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit especially when played at high volume levels, so make sure the amp you pair with the Motion 50XTi can provide this impedance level.
These two speakers also have different sensitivity levels. Evoke 25C sensitivity is rated at 88 dB and the Motion 50XTi's is rated at 94 dB. This 6 dB difference makes the MartinLogan 50XTi a more sensitive speaker compared to Dynaudio Evoke 25C, hence will play louder with the same amount of watts.
Sensitivity
Center Channel Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
Evoke 25C can handle a max power of 300 watts RMS from the amp the whereas Evoke 25C has a max power handling value of 200 watts RMS , 100 watts less than the Motion 50XTi.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Motion 50XTi features Custom 5-way bi-wire tool-less binding posts posts which make bi-amping or bi-wiring possible. Evoke 25C has a Binding post which doesn't feature bi-amping/bi-wiring.
Dynaudio Evoke 25C's Binding post terminals
MartinLogan 50XTi's Custom 5-way bi-wire tool-less binding posts terminals allows Bi-amping or bi-wiring
Cabinet Type and Port Position
Both Evoke 25C and Motion 50XTi have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Dynaudio Evoke 25C's and MartinLogan 50XTi's external dimensions. Dynaudio Evoke 25C has external dimensions of 183.0 x 602.0 x 281.0mm ( 7-3/16 x 23-11/16 x 11-1/16inch) whereas MartinLogan 50XTi has external dimensions of 196.0 x 585.0 x 347.0mm ( 7-11/16 x 23 x 13-5/8inch) .
Dynaudio Evoke 25C is 13mm shorter and 66mm less deeper than MartinLogan 50XTi but it is also 17mm wider.

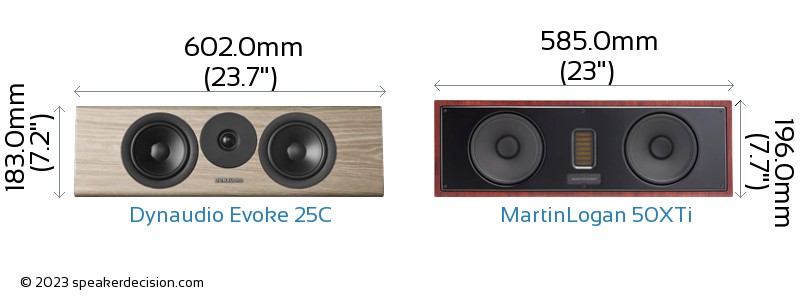

Below you can see the front view size comparison of Dynaudio Evoke 25C and MartinLogan 50XTi in scale.
Comparison image of Dynaudio Evoke 25C and MartinLogan 50XTi Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Dynaudio Evoke 25C is approximately 1691.6cm2 / 262.2inch2 and base area of the MartinLogan 50XTi is approximately 2030.0cm2 / 314.7inch2. The Evoke 25C requires 17% less surface area than the Motion 50XTi which gives it a small advantage on placement in tight spaces.
