In this review, we will be comparing 702 S3 and Heresy IV, two Passive Floor-standing speakers from Bowers Wilkins and Klipsch.
Let's have a brief look at the main features
of B&W 702 S3 and Klipsch Heresy IV first before getting into our more
detailed comparison.
B&W 702 S3 Key Specs
- 3-way Design
- 1" Tweeter
- 6" Midrange
- 3 x 6.5" Aerofoil Woofer
- 46-28k Hz Frequency Response
- 90 dB Sensitivity
- Impedance: 8ohms
- Power Range:30-300watts
- Weight:33.46kg
- Dimensions (H x W x D): 1138.0" x 7.6" x 15.4"( 1138.0 x 192.0 x 391.0mm )
Klipsch Heresy IV Key Specs
- 3-way Design
- 1" horn-loaded Tweeter
- 1.75" Midrange
- 12" Fiber-composite Woofer
- 1.75" Midrange
- 48-20k Hz Frequency Response
- 99 dB Sensitivity
- Impedance: 8ohms
- Power Range:up to 100watts
- Weight:20.45kg
- Dimensions (H x W x D): 631.0" x 15-1/2" x 13-1/4"( 631.0 x 394.0 x 337.0mm )
In the following sections, we will get into more detail in order to better understand how the B&W 702 S3 and Klipsch Heresy IV compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both 702 S3 and Heresy IV are 3-way speakers.
| Driver |
B&W 702 S3 |
Klipsch Heresy IV |
|
Driver Setup
|
3-way
|
3-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
1 x 6-inch |
1 x 1.75-inch |
|
Woofer
|
3 x 6.5-inch
|
1 x 12-inch
|
702 S3 features a 1" Tweeter , a 6" Midrange and 3 x 6.5" Aerofoil Woofer . On the other hand, the Heresy IV features a 1" titanium-diaphragm compression horn-loaded Tweeter , a 1.75" Midrange and 1 x 12" Fiber-composite Woofer .
Frequency Response
702 S3 has a frequency range of 46-28k Hz whereas Heresy IV has a frequency range of 48-20k Hz. With a minimum frequency of 46Hz, the 702 S3 can go slightly deeper then the Heresy IV's min frequency of 48Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
High Frequency
Floor-standing Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
702 S3 and Heresy IV have the same Impedance of 8 ohms but where they differ is the sensitivity levels. 702 S3 sensitivity is rated at 90 dB and the Heresy IV's is at 99 dB. This 11 dB difference makes the Klipsch Heresy IV a more sensitive speaker compared to B&W 702 S3, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
702 S3 can handle a max power of 300 watts RMS from the amp the whereas Heresy IV has a max power handling value of 100 watts RMS, 200 watts less than the 702 S3.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Both 702 S3 and Heresy IV features dual binding post speaker terminals for bi-amping or bi-wiring.
B&W 702 S3's Binding post terminals allows Bi-amping or bi-wiring
Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare B&W 702 S3's and Klipsch Heresy IV's external dimensions. B&W 702 S3 has external dimensions of 1138.0 x 192.0 x 391.0mm ( 44.8-inch x 7.6-inch x 15.4-inch) whereas Klipsch Heresy IV has external dimensions of 631.0 x 394.0 x 337.0mm ( 24-13/16 x 15-1/2 x 13-1/4inch) .
Klipsch Heresy IV is 507mm shorter and 54mm less deeper than B&W 702 S3 but it is also 202mm wider.

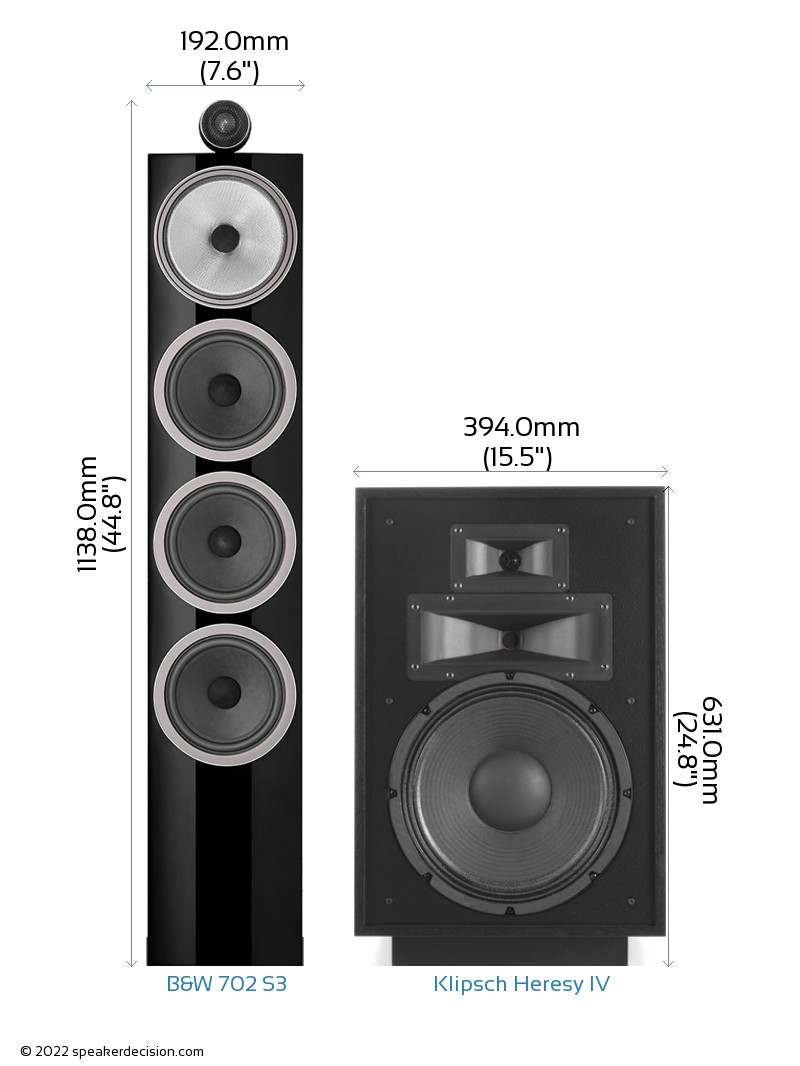

Below you can see the front view size comparison of B&W 702 S3 and Klipsch Heresy IV in scale.
Comparison image of B&W 702 S3 and Klipsch Heresy IV Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the B&W 702 S3 is approximately 750.7cm2 / 116.4inch2 and base area of the Klipsch Heresy IV is approximately 1327.8cm2 / 205.8inch2. The 702 S3 requires 43% less surface area than the Heresy IV which gives it a small advantage on placement in tight spaces.
