In this review, we will be comparing 606 S3 and EVO4.1, two Passive Bookshelf speakers from Bowers Wilkins and Wharfedale.
Let's have a brief look at the main features
of B&W 606 S3 and Wharfedale EVO4.1 first before getting into our more
detailed comparison.
B&W 606 S3 Key Specs
- 2-way Design
- 1" Decoupled Double Dome Titanium Tweeter
- 6.5" Continuum Woofer
- 52-28k Hz Frequency Response
- 88 dB Sensitivity
- Impedance: 8ohms
- Power Range:30-120watts
- Weight:7.05kg
- Dimensions (H x W x D): 344.0" x 7.4" x 12.9"( 344.0 x 189.0 x 328.0mm )
Wharfedale EVO4.1 Key Specs
- 2-way Design
- 1.18x2.36" AMT (Ribbon) Tweeter
- 5" Kevlar Woofer
- 64-22k Hz Frequency Response
- 87 dB Sensitivity
- Impedance: 8ohms
- Power Range:25-100watts
- Weight:7.80kg
- Dimensions (H x W x D): 335.0" x 8.2" x 11.6"( 335.0 x 210.0 x 295.0mm )
What size room are the B&W 606 S3 and Wharfedale EVO4.1 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
B&W 606 S3 |
Wharfedale EVO4.1 |
| Near-field |
Poor |
Average |
| Small Room |
Average |
Good |
| Mid-size Room |
Good |
Average |
| Large Room |
Average |
Poor |
| Very Large Room |
Poor |
Bad |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the B&W 606 S3 and Wharfedale EVO4.1 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both 606 S3 and EVO4.1 are 2-way speakers.
| Driver |
B&W 606 S3 |
Wharfedale EVO4.1 |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1.18x2.36-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 6.5-inch
|
1 x 5-inch
|
606 S3 features a 1" Titanium Decoupled Double Dome Titanium Tweeter and 1 x 6.5" Continuum Woofer . On the other hand, the EVO4.1 features a 1.18x2.36" AMT (Ribbon) Tweeter and 1 x 5" Kevlar Woofer .
Frequency Response
606 S3 has a frequency range of 52-28k Hz whereas EVO4.1 has a frequency range of 64-22k Hz. With a minimum frequency of 52Hz, the 606 S3 can go significantly deeper on the low side and provide stronger bass compared to the EVO4.1's min frequency of 64Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
High Frequency
Bookshelf Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
606 S3 and EVO4.1 have the same Impedance of 8 ohms but where they differ is the sensitivity levels. 606 S3 sensitivity is rated at 88 dB and the EVO4.1's is at 87 dB. This 1 dB difference makes the B&W 606 S3 a more sensitive speaker compared to Wharfedale EVO4.1, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
606 S3 can handle a max power of 120 watts RMS from the amp the whereas EVO4.1 has a max power handling value of 100 watts RMS, 20 watts less than the 606 S3.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Both 606 S3 and EVO4.1 features dual binding post speaker terminals for bi-amping or bi-wiring.
B&W 606 S3's Binding post terminals allows Bi-amping or bi-wiring
Wharfedale EVO4.1's Post terminals allows Bi-amping or bi-wiring
Cabinet Type and Port Position
606 S3 has a rear firing port whereas EVO4.1 has a bottom firing ports. Wharfedale EVO4.1's bottom-firing port gives more flexibility in placement in regards to proximity to walls compared to B&W 606 S3 with its rear-firing port.
Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare B&W 606 S3's and Wharfedale EVO4.1's external dimensions. B&W 606 S3 has external dimensions of 344.0 x 189.0 x 328.0mm ( 13.6 x 7.4 x 12.9inch) whereas Wharfedale EVO4.1 has external dimensions of 335.0 x 210.0 x 295.0mm ( 13.1 x 8.2 x 11.6inch) .
Wharfedale EVO4.1 is 9mm shorter and 33mm less deeper than B&W 606 S3 but it is also 21mm wider.

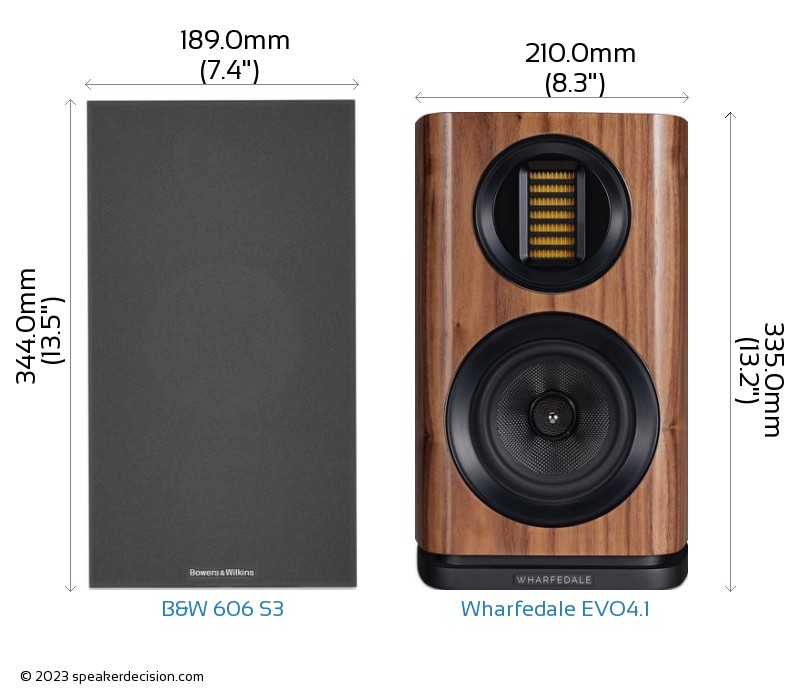

Below you can see the front view size comparison of B&W 606 S3 and Wharfedale EVO4.1 in scale.
Comparison image of B&W 606 S3 and Wharfedale EVO4.1 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the B&W 606 S3 is approximately 619.9cm2 / 96.1inch2 and base area of the Wharfedale EVO4.1 is approximately 619.5cm2 / 96.0inch2. The 606 S3 requires 0% more surface area than the EVO4.1 which gives it a small disadvantage on placement in tight spaces.

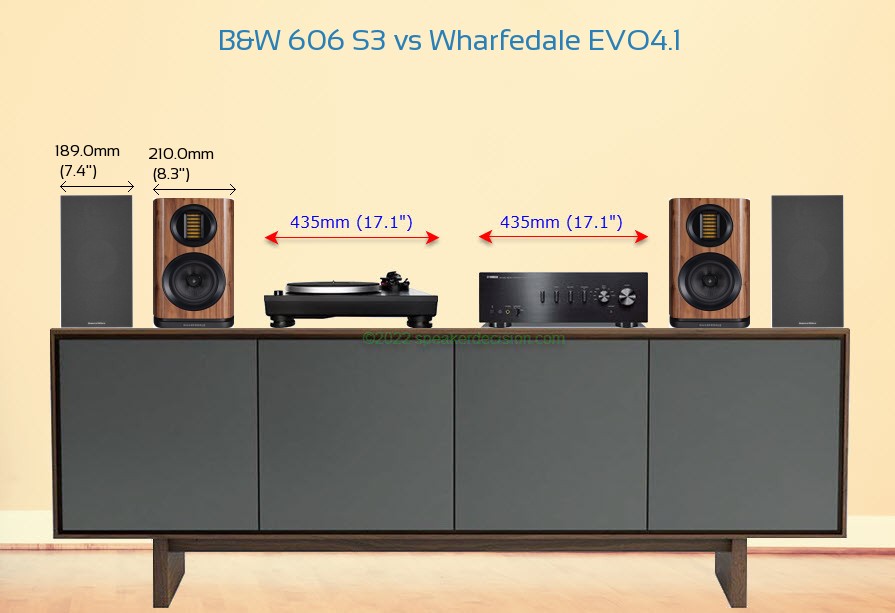

Here is an another comparison that shows both speakers on a BDI Octave Media Cabinet, next to a standard size amplifier and turntable in scale:
Size Comparison image of B&W 606 S3 and Wharfedale EVO4.1 on a Media Console
