In this review, we will be comparing A100P and Minx X301, two Powered Subwoofer speakers from JBL and Cambridge Audio. Being Powered subwoofers, they both have built-in amplifiers so you don't need an external power amp or an integrated amp to power them. Let's have a brief look at the main features of JBL Stage A100P and Cambridge Audio Minx X301 first before getting into our more detailed comparison.
In the following sections, we will get into details in order to better understand how the JBL Stage A100P and Cambridge Audio Minx X301 compare and hopefully end up with enough arguments to decide which one of these subwoofers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
The efficiency of a subwoofer is directly proportional to the total radiating are squared hence the woofer quantity and diameter.Both JBL Stage A100Pand Cambridge Audio Minx X301 have a single woofer setup however the JBL Stage A100P's woofer is 10-inch whereas the Cambridge Audio Minx X301 features a 8-inch woofer.
Frequency Response
A100P has a frequency range of 35-150 Hz whereas Minx X301 has a frequency range of 31-200 Hz. With a minimum frequency of 31Hz, the Minx X301 can go slightly deeper then the A100P's min frequency of 35Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Subwoofer class in our database.
Low Frequency
Subwoofer Speakers
Cambridge Audio Minx X301
High Frequency
Subwoofer Speakers
Cambridge Audio Minx X301
Cabinet Type
The JBL Stage A100P has a Bass reflex type cabinet. On the other hand the Cambridge Audio Minx X301 have Passive Radiator type enclosure. Passive Radiator type subwoofers sports a non-powered cone that moves in response to the main woofer to move air out in order to generate stronger bass in a smaller body compared to ported or sealed designs.
Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare JBL Stage A100P's and Cambridge Audio Minx X301's external dimensions. JBL Stage A100P has external dimensions of 359.0 x 337.0 x 435.0mm ( 14-1/8 x 13-1/4 x 17-1/8inch) whereas Cambridge Audio Minx X301 has external dimensions of 312.0 x 267.0 x 310.0mm ( 12-1/4 x 10-1/2 x 12-3/16inch) .
JBL Stage A100P is clearly the larger of the two speakers. Its body is 70mm wider, 47mm taller and 125mm deeper than Cambridge Audio Minx X301.

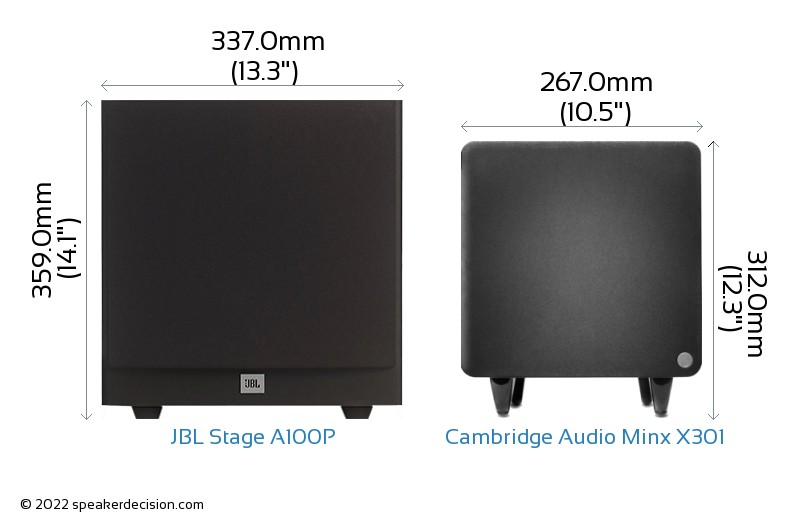

Below you can see the front view size comparison of JBL Stage A100P and Cambridge Audio Minx X301 in scale.
Comparison image of JBL Stage A100P and Cambridge Audio Minx X301 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the JBL Stage A100P is approximately 1466.0cm2 / 227.2inch2 and base area of the Cambridge Audio Minx X301 is approximately 827.7cm2 / 128.3inch2. The A100P requires 77% more surface area than the Minx X301 which gives it a small disadvantage on placement in tight spaces.
Weight Comparison The weight of a subwoofer may become an important factor if you need to move and reposition the unit often to find the optimal positioning, also known as 'Subwoofer Crawling'. The JBL Stage A100P weighs 13.66kg / 30.1lbs and the Cambridge Audio Minx X301 weighs 7.50kg / 16.5lbs. This makes the A100P 82% heavier than the Minx X301.
Here is a comparison of how A100P and Minx X301's weights compare with the average, max and min weights in Powered Subwoofer class.
Weight
All Subwoofer Speakers
Cambridge Audio Minx X301
What's in the Box of JBL Stage A100P?
Here are the items that are included inside the box of A100P:
Powered subwooferGrille6-feet AC power cord4 Spike feetOwners ManualWarranty CardImportant Safety Instructions
What's in the Box of Cambridge Audio Minx X301?
Here are the items that come with the Minx X301:
Powered subwooferGrille (installed)6-feet AC power cordInstallation GuideImportant Safety Instructions
 Woofer Size |
10 inches
vs
8 inches
|
Larger woofer |
 Price per pair* |
240USD
vs
549USD
|
costs less (*prices may change depending on the seller, location and time) |
| Low Frequency Response |
31 Hz
vs
35 Hz
|
Generates deeper bass |
 High Frequency Response |
200k Hz
vs
150k Hz
|
Generates higher frequency |
 Port Position |
Front
vs
Rear
|
Gives more flexibility placing close to walls |
 Height |
312mm
vs
359mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
827cm2
vs
1466cm2
|
Takes less floor space |
| General |
JBL Stage A100P |
Cambridge Audio Minx X301 |
| Brand |
JBL |
Cambridge Audio |
| Speaker Type |
Powered Subwoofer |
Powered Subwoofer |
| Max Amplifier Output |
150 watts |
300 watts |
| Frequency Response |
35-150 Hz |
31-200 Hz |
Amplifier |
|
|
| Watts RMS (Continuous) |
150-watt RMS |
300-watt RMS |
| Watts Peak (Max) |
300-watt RMS |
n/a |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
10" |
8" |
| Woofer Composition |
Polycellulose |
Aluminum |
| Tweeter Size |
- |
- |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Firing Direction |
rear |
front |
Physical Specs |
|
|
| Height |
359.0mm (14.1") |
312.0mm (12.3") |
| Width |
337.0mm (13.3") |
267.0mm (10.5") |
| Depth |
435.0mm (17.1") |
310.0mm (12.2") |
| Weight |
13.66kg (30.1lbs) |
7.50kg (16.5lbs) |
| Enclosure |
Bass reflex |
Passive Radiator |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
Other |
|
|
| Parts Warranty |
1 Year |
3 Years |
| Labor Warranty |
1 Year |
3 Years |
